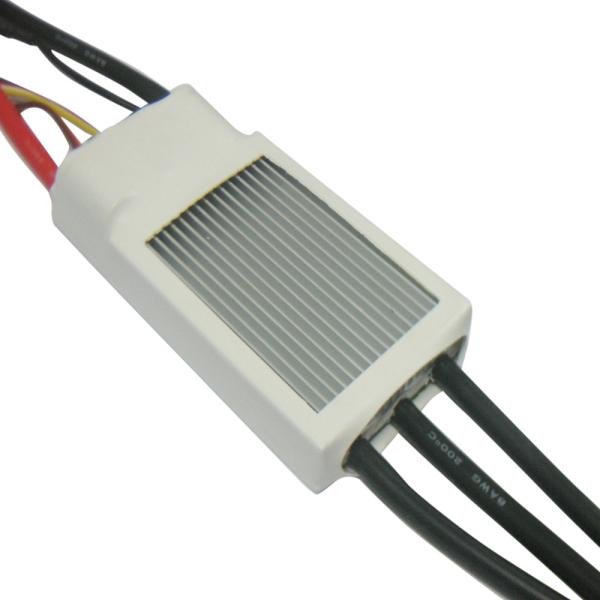

Multicopter 180A 2-7S Brushless ESC With 5V/2A BEC For RC Airplane Fix-wing

Product Model	180A
Continuous/Burst Current	100A/80A 60A/80A
Input	2-7Lipo
BEC Output	BEC 5V/2A
Size	120*60*25mm
Weight	150g

Features:

1. Design for RC Efoil, more functions

2. Battery voltage from 12V to 32V for super high voltage version.

3. Two way communication while connecting it with computer.

4. Firmware can be upgrade by user.

5. Motor cable can be inspected while Connecting the power battery

6. Simply set function value by Prog-Box or by PC via USB link wire.

7. Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

8. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V

9. Reverse function. the delay time of reverse is adjustable

10. The power of the motor forward/ reverse can be set.

11. Automatically detection the throttle route or can be set a fixed number by manual operation.

12. Auto cut off the power within 3 seconds if no radio signs.

13. Timing setting may be adjusted (0°-30°) to suit the motor type.

Hot items:

you can connect this link to enter my company's store:https://www.aliexpress.com/store/513485?spm=a2g0s.9042311.0.0.506b4c4d6lNqU4

1. Reverse: On/Off.

2. Timing:0°,1°,2°,3°,4°……30°.

3. Frequency: 8KHz, 16 KHz, 32 KHz.

4. Acceleration: Soft / Medium / Hard.

5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.

6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.

7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.

8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.

9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V

10. Cut Off Type::Slow down,Hard. l

11. Power limited forward: Off, 75%, 50%, 25%.

12. Power limited reverse: Off, 75%, 50%, 25%.

13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.

14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.

15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.

16. Throttle curve: Logarithmical,Linear,Exponential.

17. Rotation direction: Left, Right.

18. Timing monitor (TIMING MONTITOR): ON, Off.

Note:the red mark is the factory default value,you can setting function value by youself.
