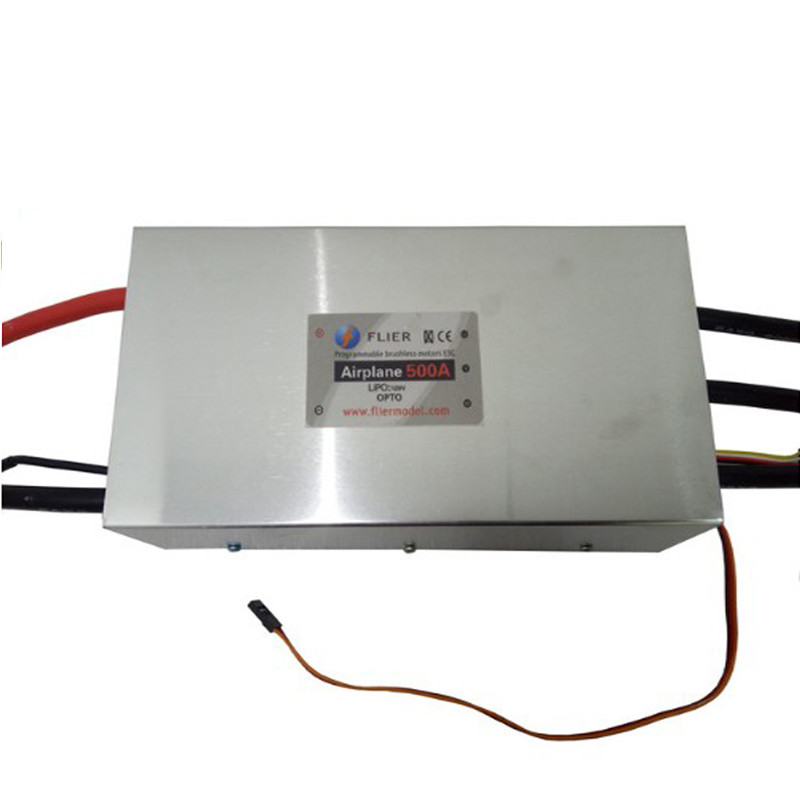

Brushless 120V 500A Electronic Speed Controller ESC for RC
Multicopter
Basic information:
| Voltage | Current | Size(mm) | weight(g) | BEC (Volts/Amps) | Box Programming support | Computer Programming support | Firmware update | |
|
| 4-120V | 500A | 205*115*55 | 1550g | OPTO | Yes | Yes | Yes |
|
item | value |
Model Number | 500A ESC |
Brand Name | original |
Place of Origin | China |
| Guangdong |
Type: | Voltage Regulator |
ESC info:
1:There are three pins wires for the receiver port, length is
300mm:
---The brown wire is ground,
---The yellow wire is pulse signal wire, it is a 5V PWM pulse
signal and you just controll the ESC via the wire,
---The red wire is the power wire 5V input to the ESC; you must
supply a 5V voltage to the red wire otherwise the ESC won't work.
2:A standard receiver signal is 1-2mS@50Hz. It is saild that the
receiver will send 1-2mS 5V pulse per 20mS to the ESC. 1mS pulse
will arm the ESC,and the motor will stop. when increase the
throttle, the pulse width also increase, about 1.1mS, the motor
will start to spin, and 2mS, the motor will spin at full speed.
3:Baterry wire: length 180mm, 6AWG. Red wire connect to the
positive pole, black connect to the negative pole. The black side
of the small black 18AWG line is Anti-spark wire,It is built in a
bullet connector and a 10 ohms resistor. You must connect the end
of the wire to the battery negative. you can connect the red wire
of ESC to the positive pole of battery at first. Then connect the
anti-spark wires well. The last step is to connect the black wire
of ESC to the battery’s negative pole. If do so, no spark will be
generated, and this will protect the main bullets connector from
spark damage.
4.Motor wire; 3 pcs balck wire, 6AWG, 180mm.
5.Program wire: 4 pins, length 100mm. Use USB link to program via
PC or program via program box.
Individual Static Bag + Standard safe exporting packing With
protective foam packaging
Feature:
The unmanned electromechanical adjustment has a total of five
lines. 3 at one end, 2 at the other end, 3 with the motor connected
to 3 lines, no matter whether it is positive or negative.
As long as the direction of rotation is reversed, any two wires can
be exchanged. The other two are power cords, which are directly
connected to the battery. Forgot to have a thin servo plug, this is
directly connected to the flight controller or receiver.
Reverse function. the delay time of reverse is adjustable.
Automatically detection the throttle route or can be set a fixed
number by manual operation.
Auto cut off the power within 3 seconds if no radio signs.
Timing setting may be adjusted (0°-30°) to suit the motor type.
Setting function value:
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage
is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol
CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S,
1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting
function value by youself.
Pictures:
Trade Terms:
1.Payment :T/T ,Paypal,West union .
2.Production lead time :5 days for 100-200 pcs ,10days for
200-300pcs .
3.Sample can be delivered within 3 days.
4.Discounts are offered based on order quantities .
5.MOQ: 2 pcs.
