12S 250A Brushless Controller RC Car ESC 5.5V/5A internal BEC For Traxxas



RC Car ESC Basic information:

RC Car ESC Feature:

l Two way communication while connecting it with computer.

l Motor wire can be checked while Connecting the power battery.

l Simply set function value by Prog-Box or by PC via USB link wire.

l Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

l Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-.4-1.0V,LiFe from2.2-2.8V

l Reverse function. the delay time of reverse is adjustable.

l The power of the motor forward/ reverse can be set.

l Automatically detection the throttle route or can be set a fixed number by manual operation.

l Auto cut off the power within 3 seconds if no radio signs.

Timing setting may be adjusted (0°-30°) to suit the motor type.

How to calibrate the throttle range

At present, there is no electromechanical adjustment method:

Turn on the remote control - the highest throttle - power on (slow drop) --- power off --- power on again (two drops) --- the lowest throttle (long sound drops) - power off - off Control ===== ESC calibration is completed,

Do not install paddles for calibration ESC, otherwise it is dangerous!


RC Car ESC Setting function value:

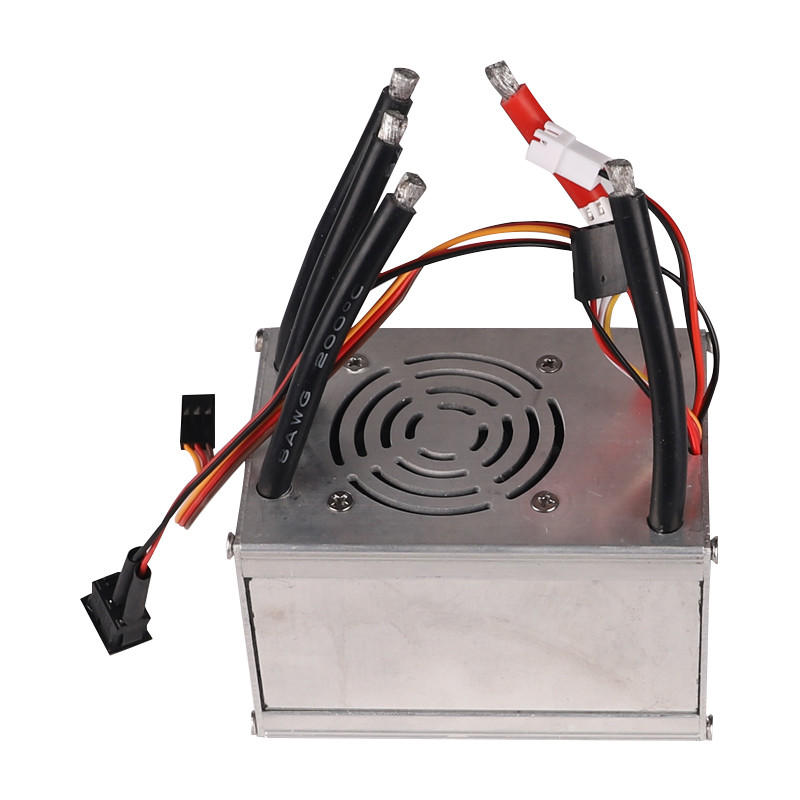

Products Picture:




Trade Terms:

1. Payment :T/T ,Paypal,West union .

2. Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .

3. Sample can be delivered within 3 days.

4. Discounts are offered based on order quantities .

5. MOQ: 2 pcs.

Shipping&Return:

1. Items will be shipped within 3 business day after payment completed received.

2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.

3. Warranty Period is 2 yrs for this item.

4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.
5. All emails will be answered within 1 working day.

Shenzhen Flier Electronics Co., Ltd. is a high-tech enterprise specializing in the research, development, production and sale of electronic products in the field of robots and UAV aeromodelling.The company's professional products are the electronic speed controller(ESC) for DC brushless motor.

Founded in 2004, the company is located in the busy section of Xixiang Street in Shenzhen. After years of development, the company has now become a professional manufacturer of brushless electronic speed controller with a wide range of varieties in China.

Our company's ESC series products are relatively advanced in the market, with more functions.It can communicate with the computer in two directions. The computer can automatically identify the type of the ESC. The computer can read the parameters of the ESC and program them. It can also be updated the firmware. Some of ESC can load the popular open source firmware.

ESC can be controlled via PWM, the DC voltage, RS232,RS485 . Some ESCs can be controlled via CAN bus too.

The company's ESC products cover ESC for marine, ESC for airplane, ESC for helicopter, ESC for multicopter, ESC foe car, ESC for surfboards, ESC for skateboards and Industrial controller.

Power ranges from 1000W to 30KW, and low voltage series voltage ranges from 12V to 30V(2S-8S).middle voltage series voltage ranges from 30V to 60V(8S-14S).high voltage series voltage ranges from 60V to 120V(14S-28S).supper high voltage series voltage ranges from 120V to 500V. the current ranges from 100 amps to 500 amps.Ultra-high ESC products are our absolute strength.

Our products have independent intellectual property rights. If necessary, we can make firmware according to customer's requirements. Our company also has a strong ability to develop new products, and has developed or is developing some related electronic products, so as to maintain the technological leading edge in this field.

The company's products have strict quality control standards, to ensure the optimization of product quality. At the same time, according to the differences of customer needs, we constantly enrich product categories, improve product functions, improve product quality and optimize product mix in order to provide customers with professional products and quality services.
