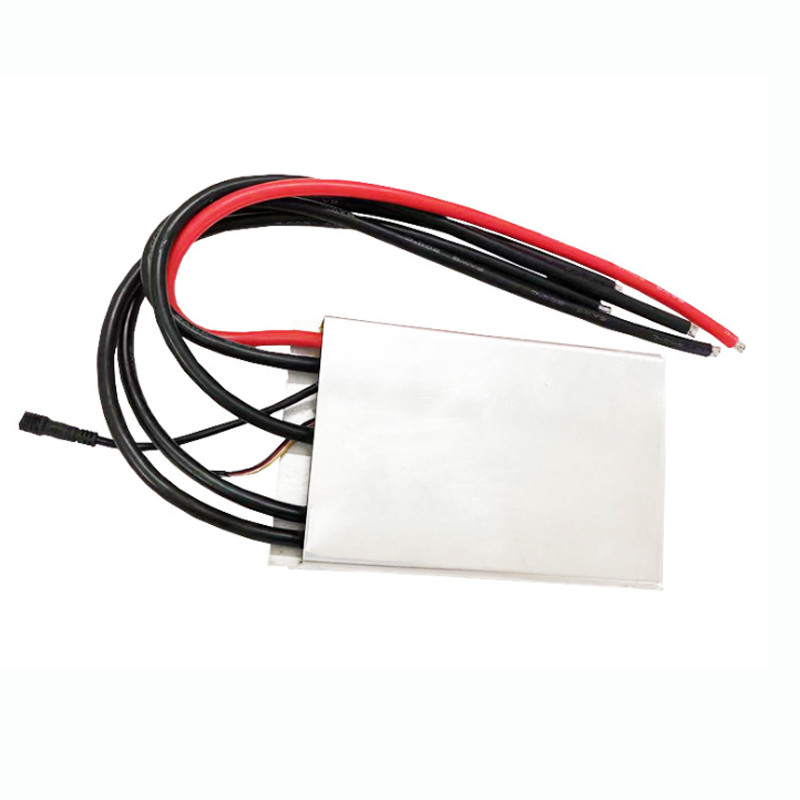

Waterproof Brushless ESC HV 22S 500A Electronic Speed brushless
Controller Brushless for Boat
Basic information:
| Voltage | Current | ESC Size(mm) | ESC weight(g) | 5V BEC (Volts/Amps) | Programming Box support | Computer Programming support | New Firmware update | |
|
| 30-120V | 500A | 216*123*37 | 2.45kg | OPTO | Yes | Yes | Yes |
|
Feature:
1. Design for Air, more functions.
2. Battery voltage from 4S to 120V for super high voltage version.
3. Two way communication while connecting it with computer.
4. Firmware can be upgraded by user.
5. Simply set function value by Prog-Box or by PC via USB link
wire.
6. Li-MH/Li-Po, Ne-Cd/Ne-mH, LiFe battery can be use.
7. Enables setting the voltage per cell for the point at which the
controller’s cut off circuitry engages. Li-MH/Li-Po from
2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V .
8. Timing settings may be adjusted (0°-30°)per degree to suit the
motor type
9. 3 types of throttle curve .
10. Automatically detection the throttle range or can be set a
fixed value by manual operation.
11. Auto cut off the power within 3 seconds if no radio signs.
12.Reverse off.
Brushless electric regulation overheat protection: built-in
temperature detection circuit, when the electric regulation
temperature is too high (more than 110 degrees) automatically
reduces the output power; when the electric regulation working
temperature, the electric regulation will reduce the output power
to protect, but will not turn off all the output power, at most to
40% of the full power, to ensure that the motor still has power,
avoid falling. When the temperature drops, the maximum power will
be gradually restored.
Setting function value:
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by
youself.
