HV 22S 380A Brushless Controller powerful RC Boat ESC for Efoil
Basic information:
| Voltage | Current | Size(mm) | weight(g) | BEC (Volts/Amps) | Box Programming support | Computer Programming support | Firmware update | |
|
| 4-22S | 380A | 165*56*30 | 520g | OPTO | Yes | Yes | Yes |
|
Feature:
There are three wires for the receiver port:
---The brown wire is ground,
---The yellow wire is pulse signal wire, it is a 5V PWM pulse
signal you just controll the ESC via the wire,
---The red wire is the power wire 5V input to the ESC; you must
supply a 5V voltage to the red wire otherwise the ESC won't work.
A standard receiver signal is 1-2mS@50Hz. It is saild that the
receiver will send 1-2mS 5V pulse per 20mS to the ESC. 1mS pulse
will arm the ESC,and the motor will stop. when increase the
throttle, the pulse width also increase, about 1.1mS, the motor
will start to spin, and 2mS, the motor will spin at full speed.
The unmanned electromechanical adjustment has a total of five
lines. 3 at one end, 2 at the other end, 3 with the motor connected
to 3 lines, no matter whether it is positive or negative.
As long as the direction of rotation is reversed, any two wires can
be exchanged. The other two are power cords, which are directly
connected to the battery. Forgot to have a thin servo plug, this is
directly connected to the flight controller or receiver.
1. Design for Boat, more functions
2. Battery voltage from 4S to 16S for super high voltage version.
3. Two way communication while connecting it with computer.
4. Firmware can be upgraded by user.
5. Simply set function value by Prog-Box or by PC via USB link
wire.
6. Li-MH/Li-Po, Ne-Cd/Ne-mH, LiFe battery can be use.
Setting function value:
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage
is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol
CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S,
1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting
function value by youself.

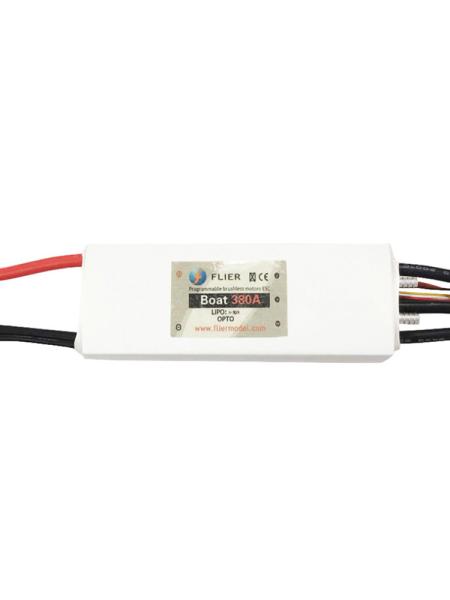

Products Picture:
